T125 5e4 SPDTマイクロスイッチ

マイクロスイッチは、間隔が狭く、トルクが大きいため、家電製品、医療機器、航空宇宙などに使用されています。通常、温度、位置、液面の検出に使用されます。

ブランド:
Gangyuan
商品番号。:
G15-06SM-150-28
注文（MOQ）:
1000
支払い:
T/T, Paypal full payment before produce
製品の起点:
ZheJiang China
色:
black
出荷ポート:
Ningbo/ Shenzhen
リードタイム：
7-10 working days depends on actual orde

幅
20.00mm x 10.00mm
取り付けタイプ
Through Hole
照明
Non-llluminated
IP 定格
IP4X

お問い合わせ

製品の詳細

その名の通り、 mini push button micro switch uses a very small force switch. It is a kind of switch in which external mechanical force acts on the movable reed through the transmission element, so that the fixed contact and the movable contact at the end are quickly connected or disconnected.

Product Description

Product Name	Micro switch
Operation position	11.4 ± 0.4mm
Rating	6A 125VAC/250 VAC
Operating force	150 ± 50gf
Pre travel	1.5mm Max
Life	10000 cycles
Pin	3 PIN

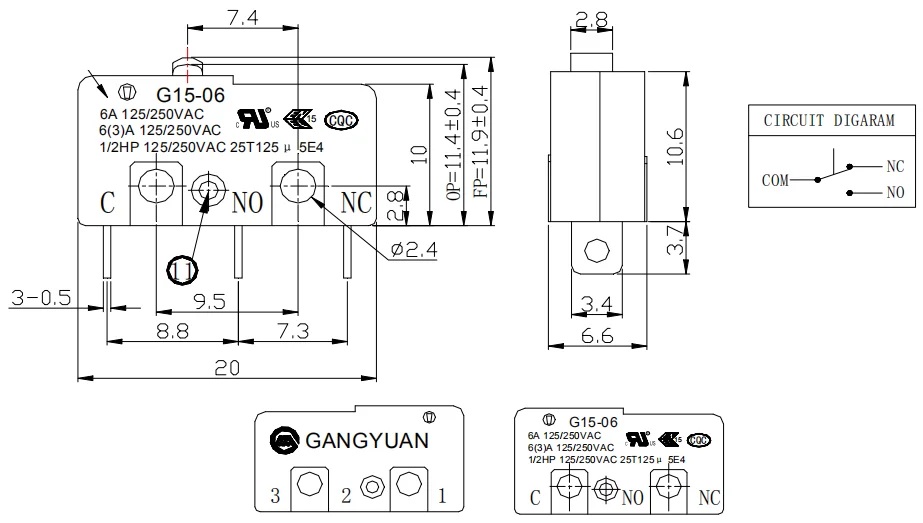

Drawing

Working principle

The external mechanical force acts on the reed through the transmission element (press pin, button, lever, roller, etc.). When the action reed moves to the critical point, it will immediately produce an action, causing the action contact to quickly open or close at the end of the action reed and the fixed contact.

When the force on the transmission element is eliminated, the acting reed will produce a reverse force. When the reverse stroke of the transmission element reaches the critical point of the action of the reed, the reverse action is completed immediately.

The contact distance of the touch tactile micro switch is small, the action stroke is short, the pressing force is small, and the on-off is rapid.

Application of micro switch

1. Electronic equipment, instrumentation, mining, power systems, household electrical equipment, and military fields such as aerospace, aviation, missiles, and tanks.
2. Computer mouse, automotive electronics, communication equipment, military products, as well as testing instruments, gas water heaters, gas stoves, small household appliances, microwave ovens, rice cookers, float equipment, medical equipment, building automation, power tools and general electrical and Radio equipment, 24-hour timer.
